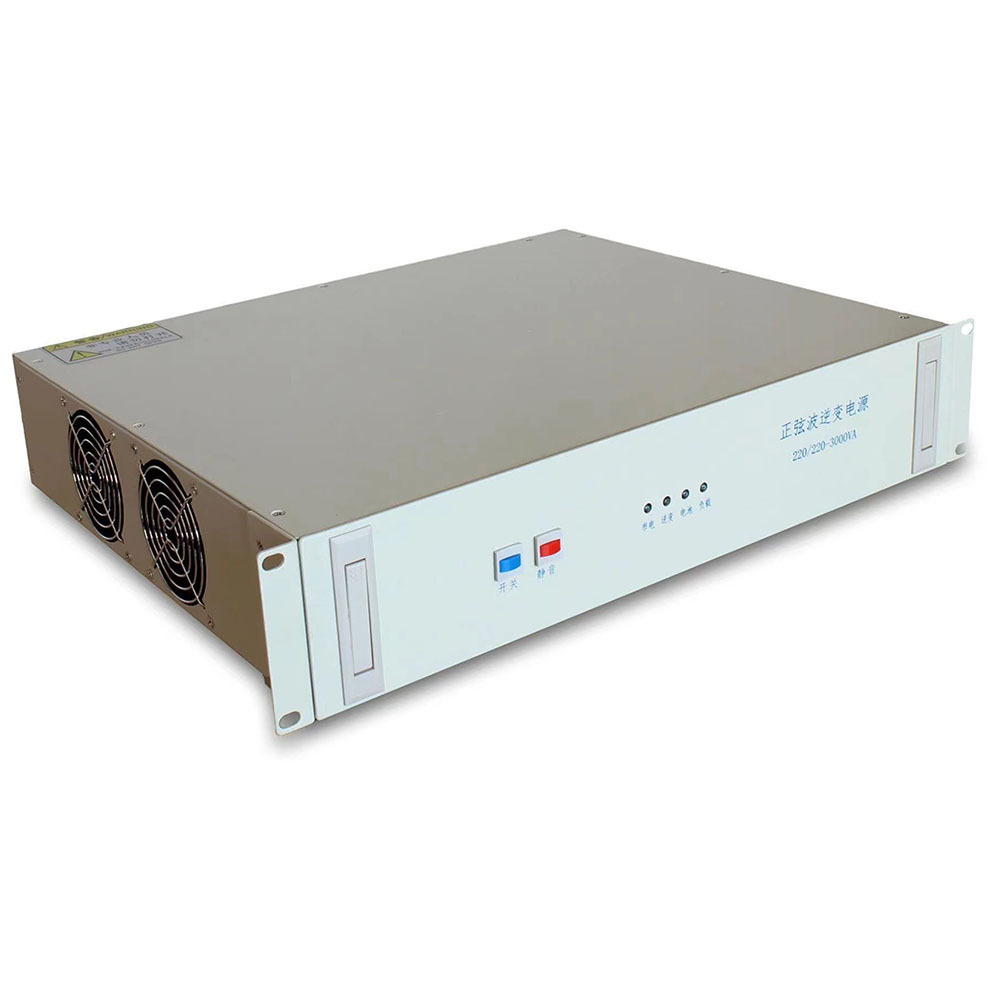

DDWD-D Series Special inverter power supply
Views:
1000
Categories
Downloads
Product introduction
1.Technical Parameter
DDWD-D Series |
WD24(48)/220-X XXVA |
|||||||
Output voltage (VA) |
500VA |
1000VA |
2000VA |
3000VA |
5000VA |
|
|
|
DC input |
Rated input voltage |
24V OR 48V |
|
|||||
Turn off voltage range |
20V~30V OR 42V~59V |
|||||||
Starting voltage range |
22V~28V OR 45V~57V |
|||||||
Ac bypass input |
Allowable bypass voltage |
265V-185V(±10V) |
||||||
Bypass conversion time |
<5ms |
|||||||
AC Output |
|
|
|
|
|
|
|
|
Inverter output voltage and frequency |
220Vac±1.5%,50HZ±0.1% |
|||||||
Inverter output current(A) |
1.8 |
3.8 |
7.2 |
10.8 |
16 |
|
|
|
Waveform |
pure sine wave |
|||||||
wave form deviation factor(THD) |
≤3% |
|||||||
Dynamic response time |
5% |
|||||||
power factor |
0.8 |
|||||||
overload capacity |
120%,30s |
|||||||
Inverter efficiency (80% resistive load) |
≥85% |
|||||||
Bypass conversion time (ms) |
≤5ms |
|||||||
Working environment |
Insulation strength (input and output) |
1500Vac,1min |
||||||
Noise(1m) |
≤40dB |
|||||||
Environment temperature |
0℃~+40℃ |
|||||||
Temperature |
0~90%,non-condensation |
|||||||
Hint |
LCD liquid crystal display |
Input and output voltage, output frequency, temperature, percentage, etc |
||||||
Inverter state |
The mains is normal, the inverter is normal, the battery is undervoltage, and the output is overloaded |
|||||||
Protection function |
Input under voltage, over voltage output overload, short circuit protection, etc |
2.Product Usage
DDWD-D series power inverter is specially designed for power plants, substations, power supply offices and other power places. Widely used in 220VDC or 110VDC power systems, mainly for closing devices, relay protection, accident lighting and other emergency power system power supply. Through the power plant or substation DC system to obtain electricity, after the corresponding power exchange, the composition of AC-DC dual power supply uninterruptible power supply system.
